Vacuum Brazing Furnace

Vacuum aluminum Xuan Hum furnace is mainly used in the automotive field of radiators, air conditioning sensor...

keywprd：

Industrial furnace

Classification：

Vacuum furnace

TEL：

0757-86688585

GUESTBOOK

Graphic Details

Product Description:

Mainly used for vacuum brazing of non-ferrous metals, stainless steel, titanium alloys, superalloys, hard alloys, etc.

Configuration Options:

Structure type: horizontal; vertical

2bar pressurized air cooling

Heating elements: molybdenum, graphite

Technical Features:

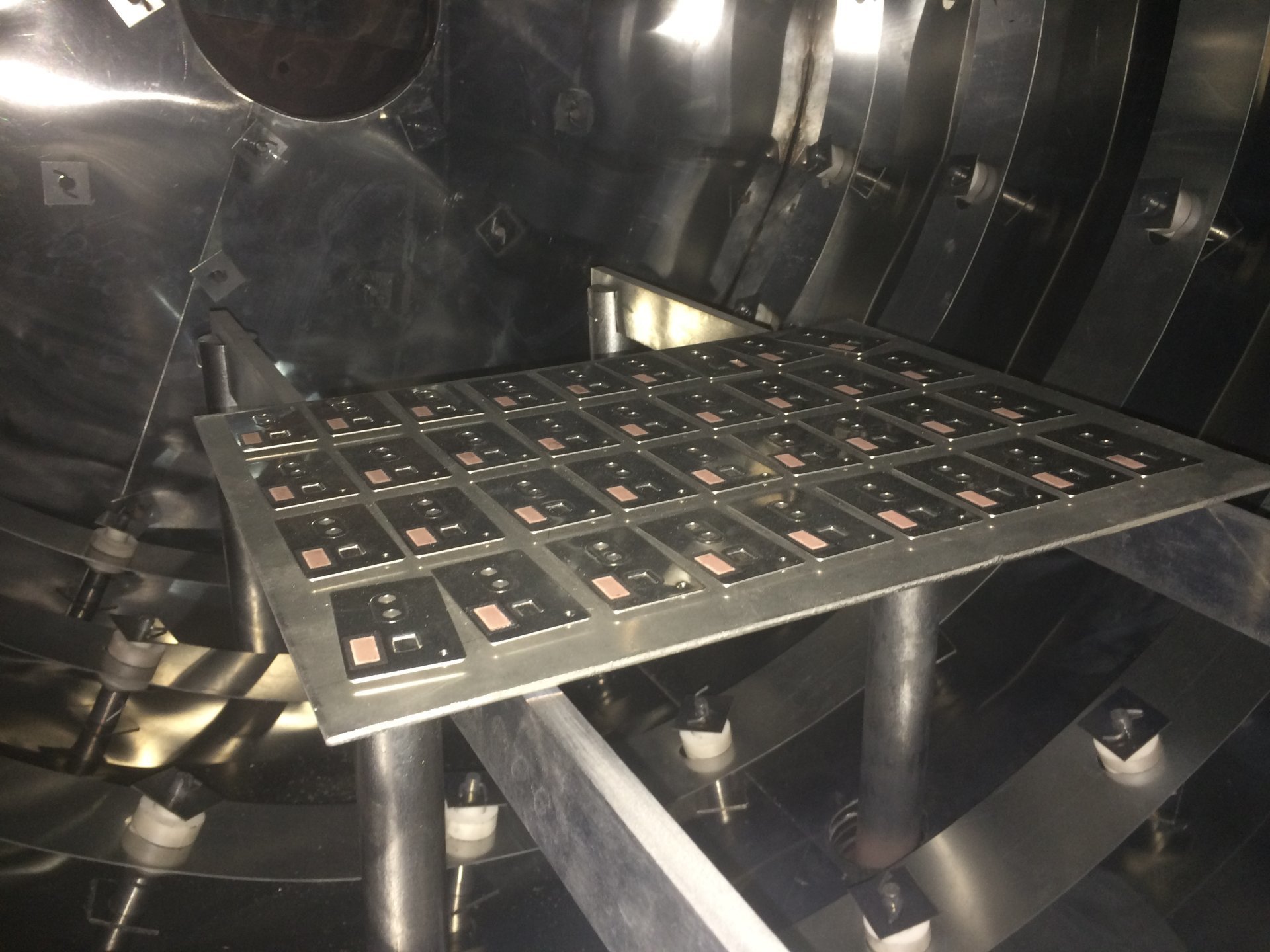

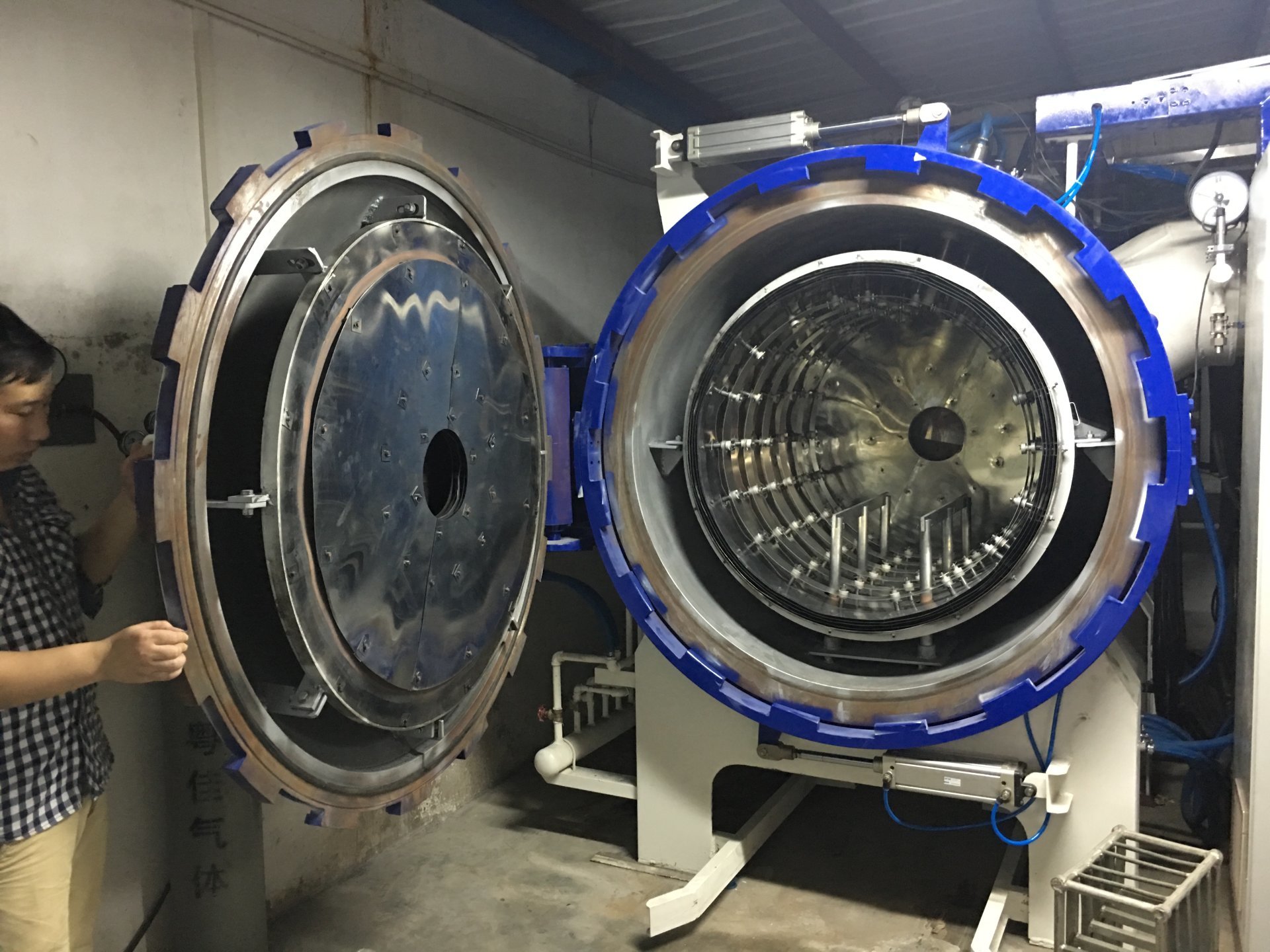

The furnace body is a horizontal, single-chamber, horizontal charging structure;

The chamber is optimized by modular design, and the temperature uniformity is excellent;

The inlet of the vacuum system is equipped with a gas condensing phase converter and a filtering and collecting device to prevent the contamination of the vacuum pump units by the flux evaporation gas;

Unique regulation and anti-pollution technology to ensure the service life of vacuum regulation;

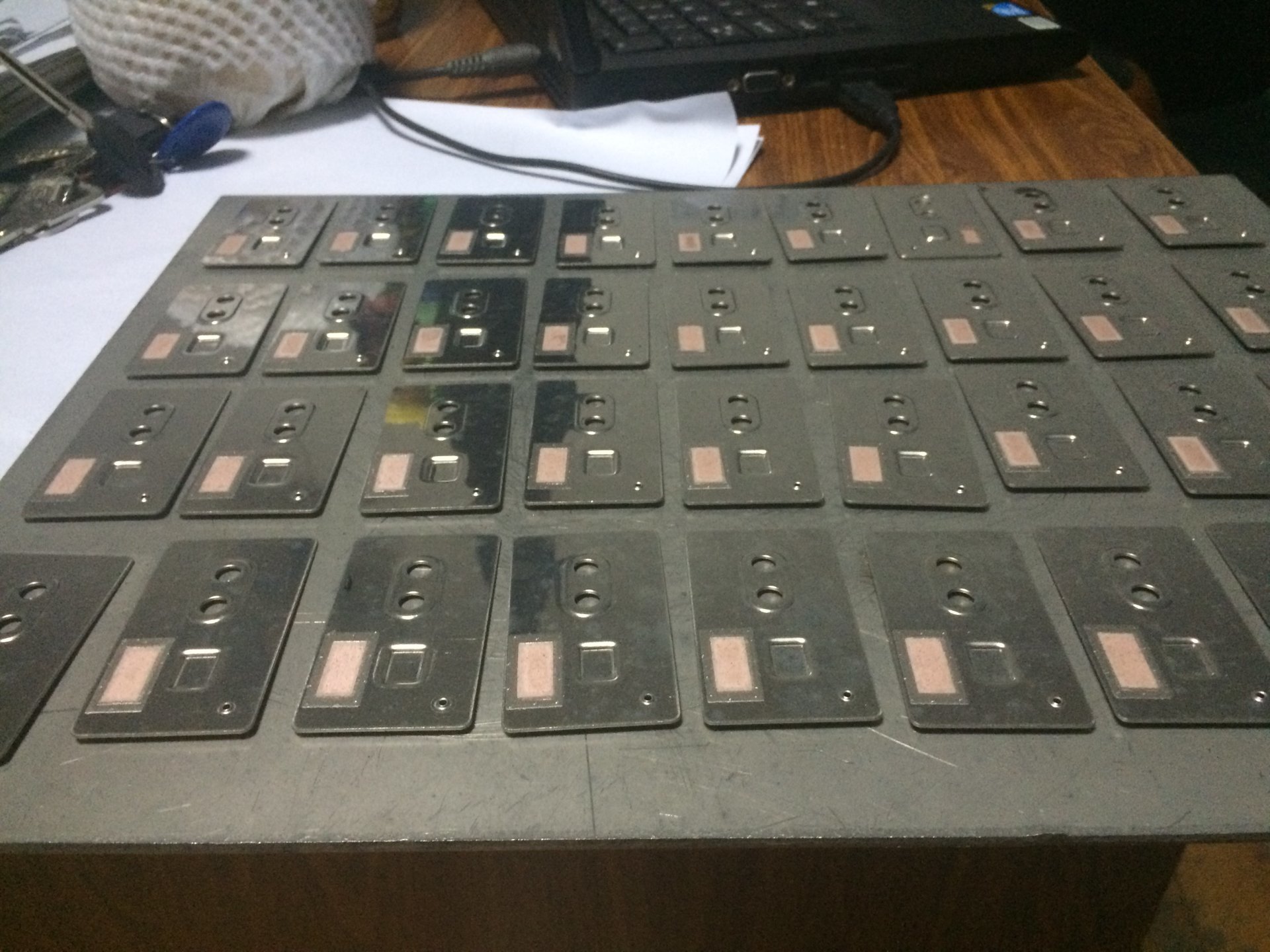

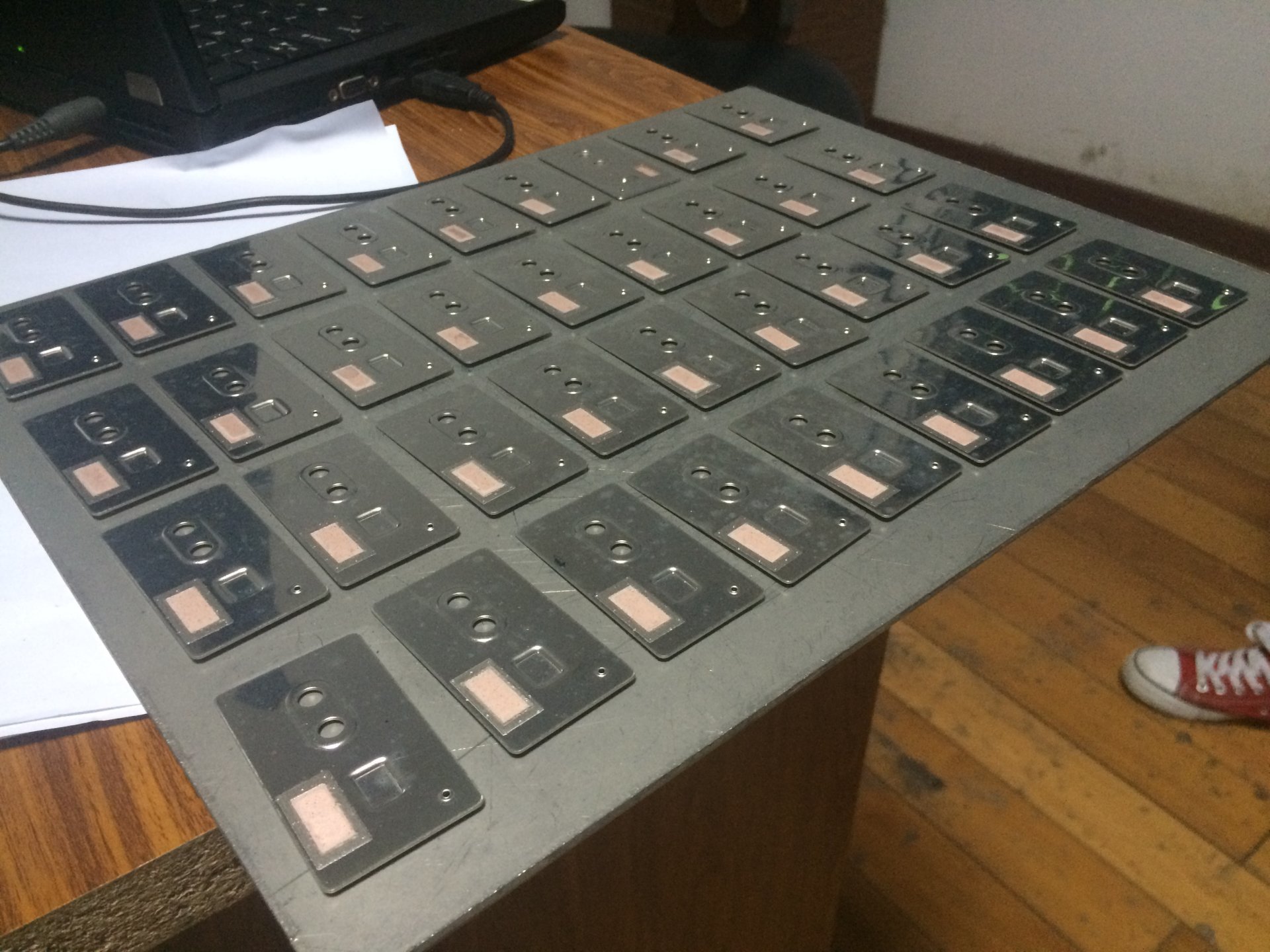

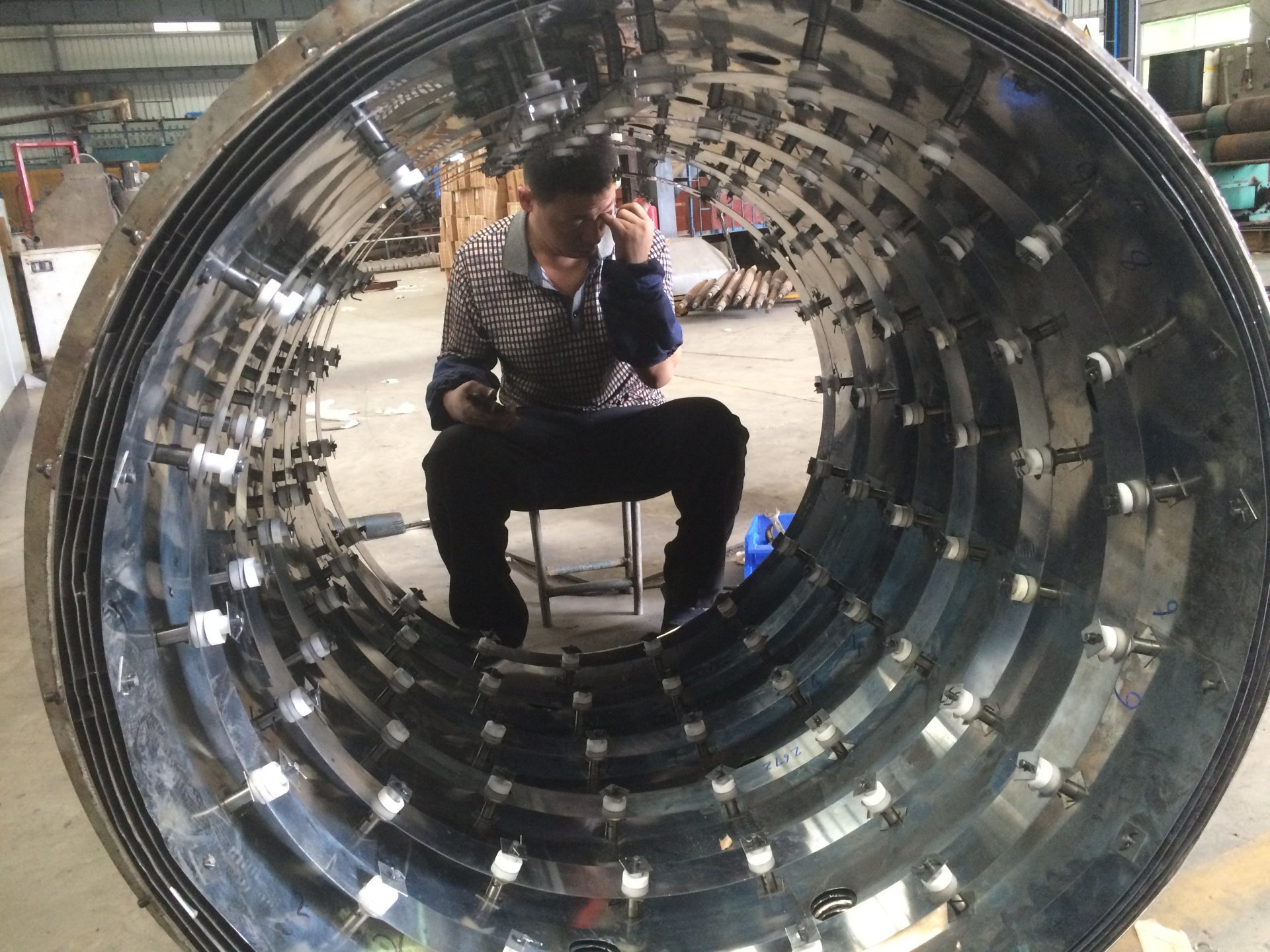

Using back insulation technology, the radiation area is larger and the insulation is excellent;

The use of molybdenum heating can improve the smooth and brightness of the workpieces.

Product Specifications

Parameter\Model	HYB-533	HYB-644	HYB-755	HYB-966	HYB-1177	HYB-1288
Hot Zone Size W×H×L（mm）	300×300×500	400×400×600	500×500×700	600×600×900	700×700×1100	800×800×1200
Loading capacity（kg）	150	250	400	600	1000	1200
Heating power（kw）	50	75	90	150	270	360
Max. temperature（℃）	1350/1700/2300	1350/1700/2300	1350/1700/2300	1350/1700/2300	1350/1700/2300	1350/1700/2300
Temperature uniformity（℃）	±5	±5	±5	±5	±5	±5
Vacuum level（Pa）	4×10-3/6×10-4	4×10-3/6×10-4	4×10-3/6×10-4	4×10-3/6×10-4	4×10-3/6×10-4	4×10-3/6×10-4
Pressure rising rate（Pa/h）	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26
Pressure rising rate（Pa/h）	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65
Cooling pressure（bar）	2/6/10	2/6/10	2/6/10	2/6/10	2/6/10	2/6/10

Note: The above parameters can be adjusted according to customer’s requirements, not as a basis for acceptance; the specific technical scheme and agreement shall prevail.
