Product Description:

Vacuum aluminum brazing furnaces are mainly used for vacuum brazing of radiators, air conditioner evaporators, condensers, cold water panels, server water-cooled chassis, radar grid antennas, waveguides, etc. in the automotive field, as well as heat exchangers and electronic communication components for aircraft, ships, compressors, air separation plans, household appliances, etc.

Technical Features:

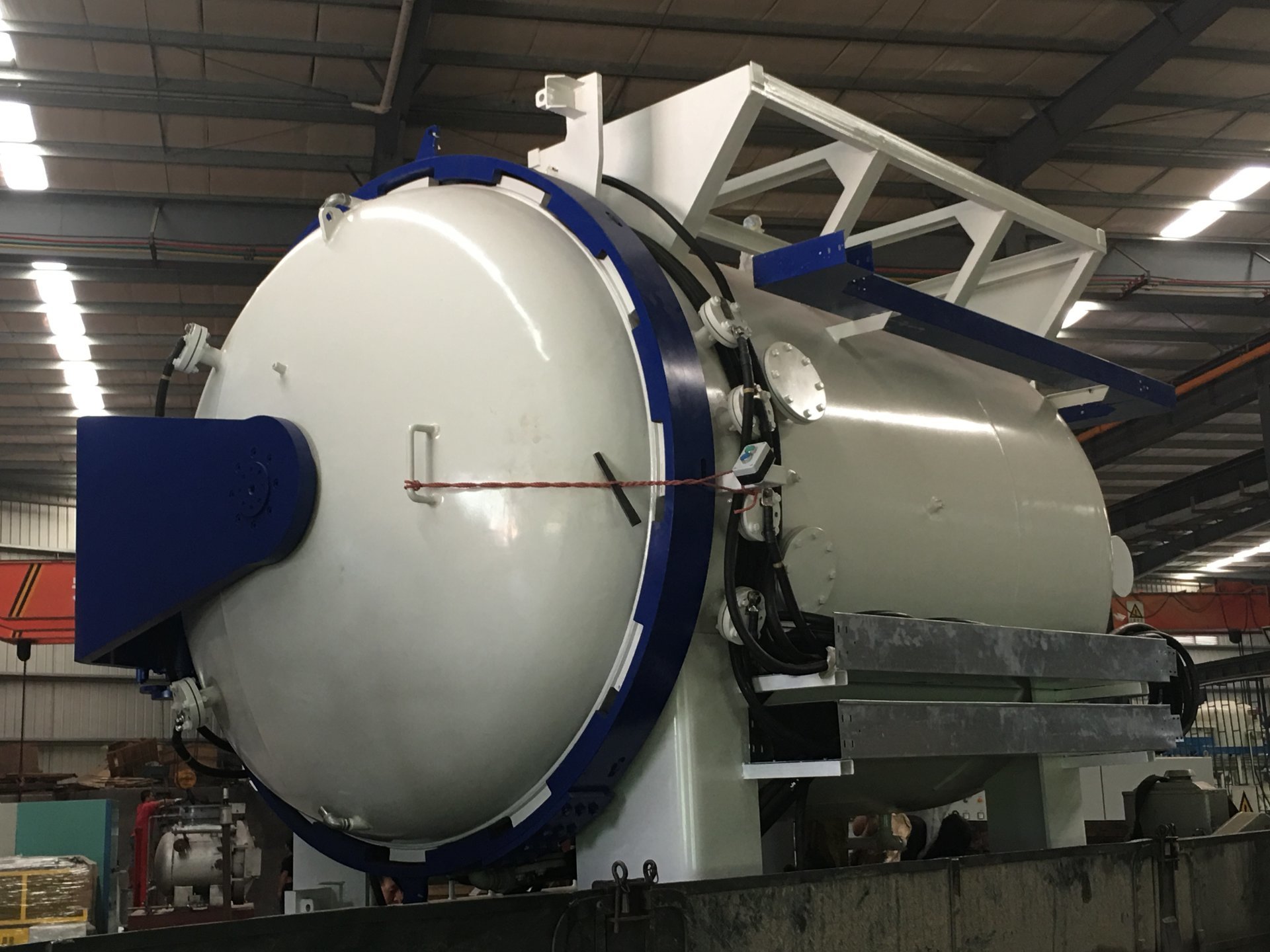

Single chamber, inner heat, cold wall, horizontal or vertical structure;

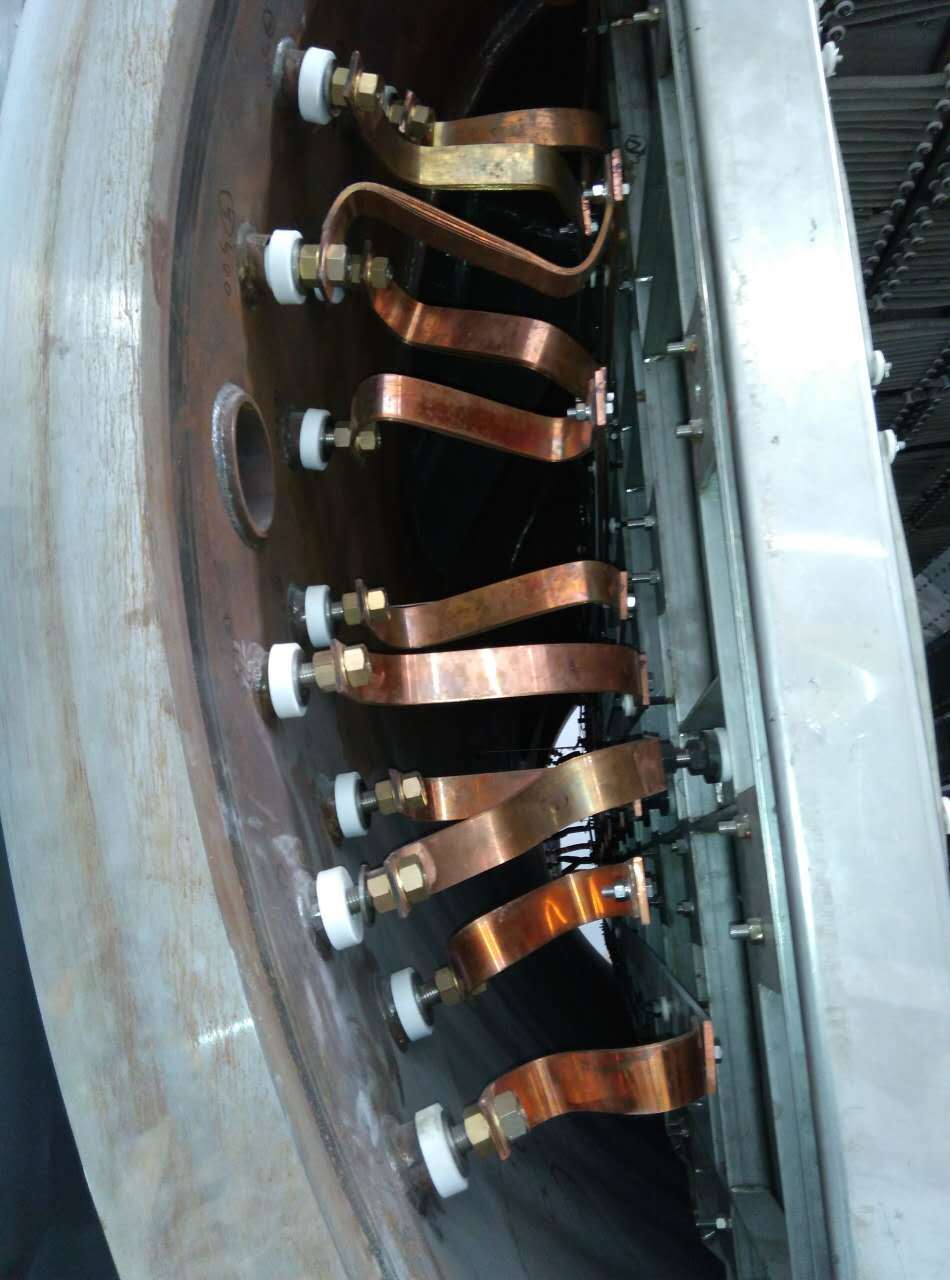

Reasonable arrangement of heating elements, large radiation area and long service life;

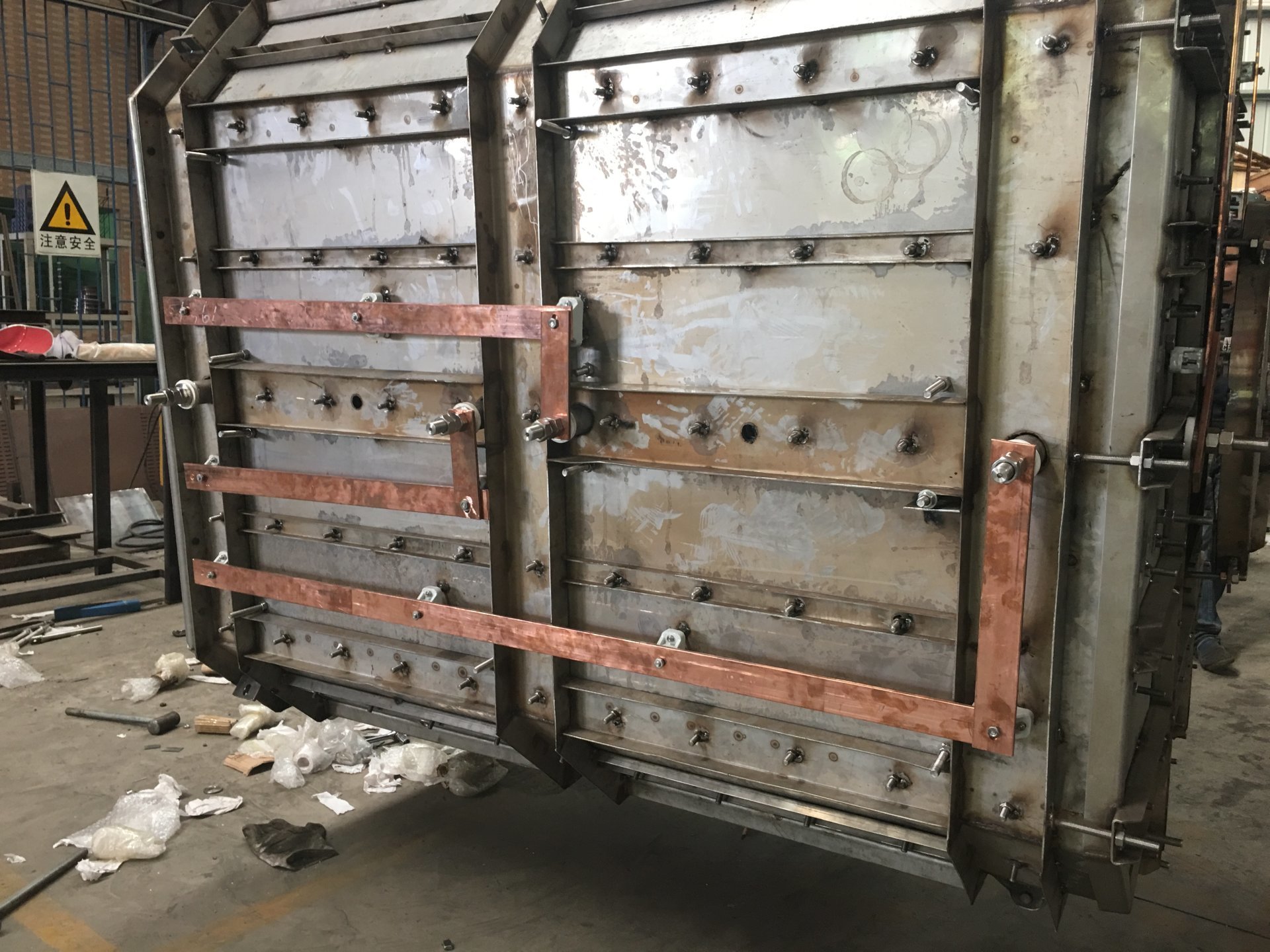

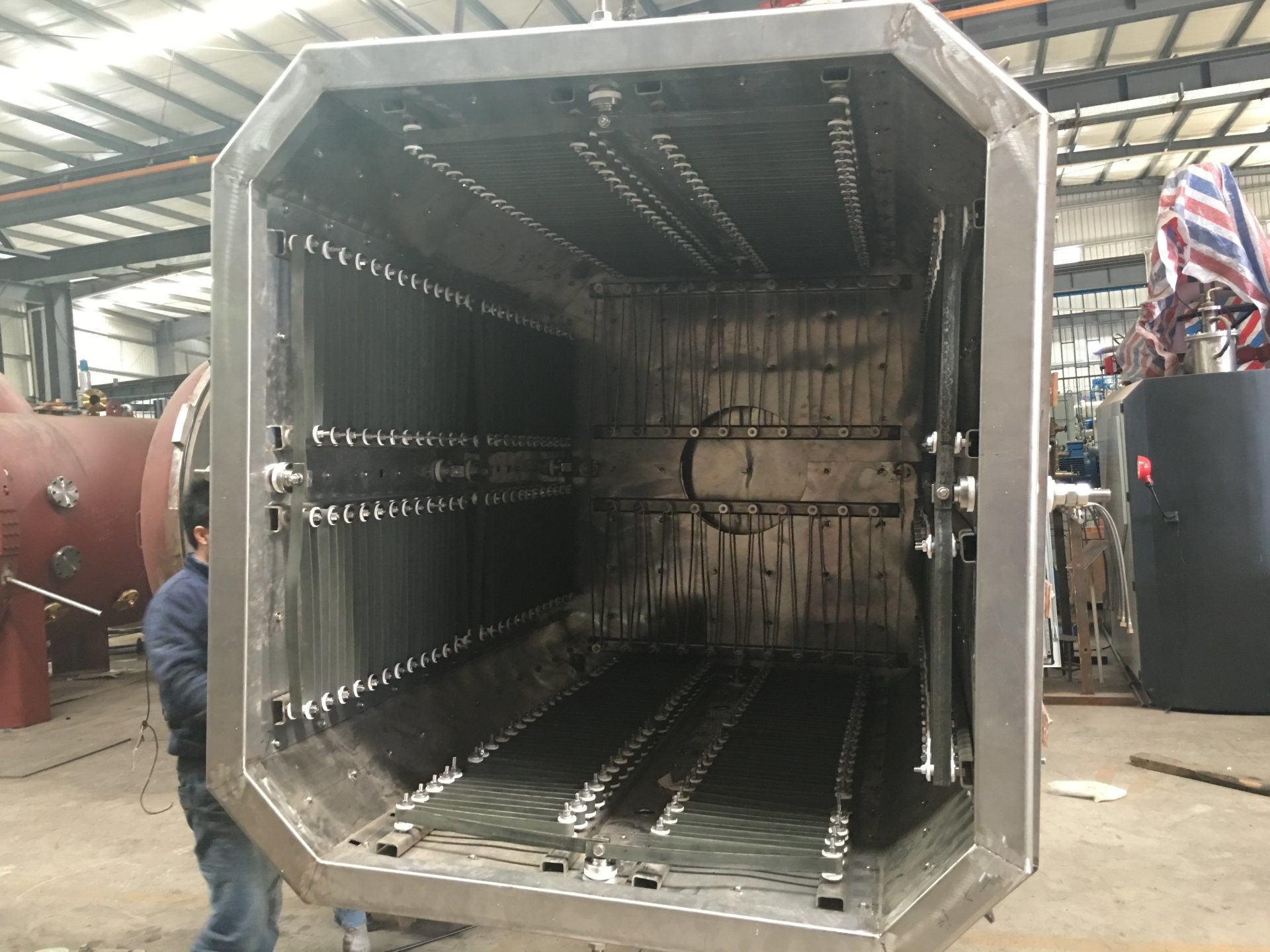

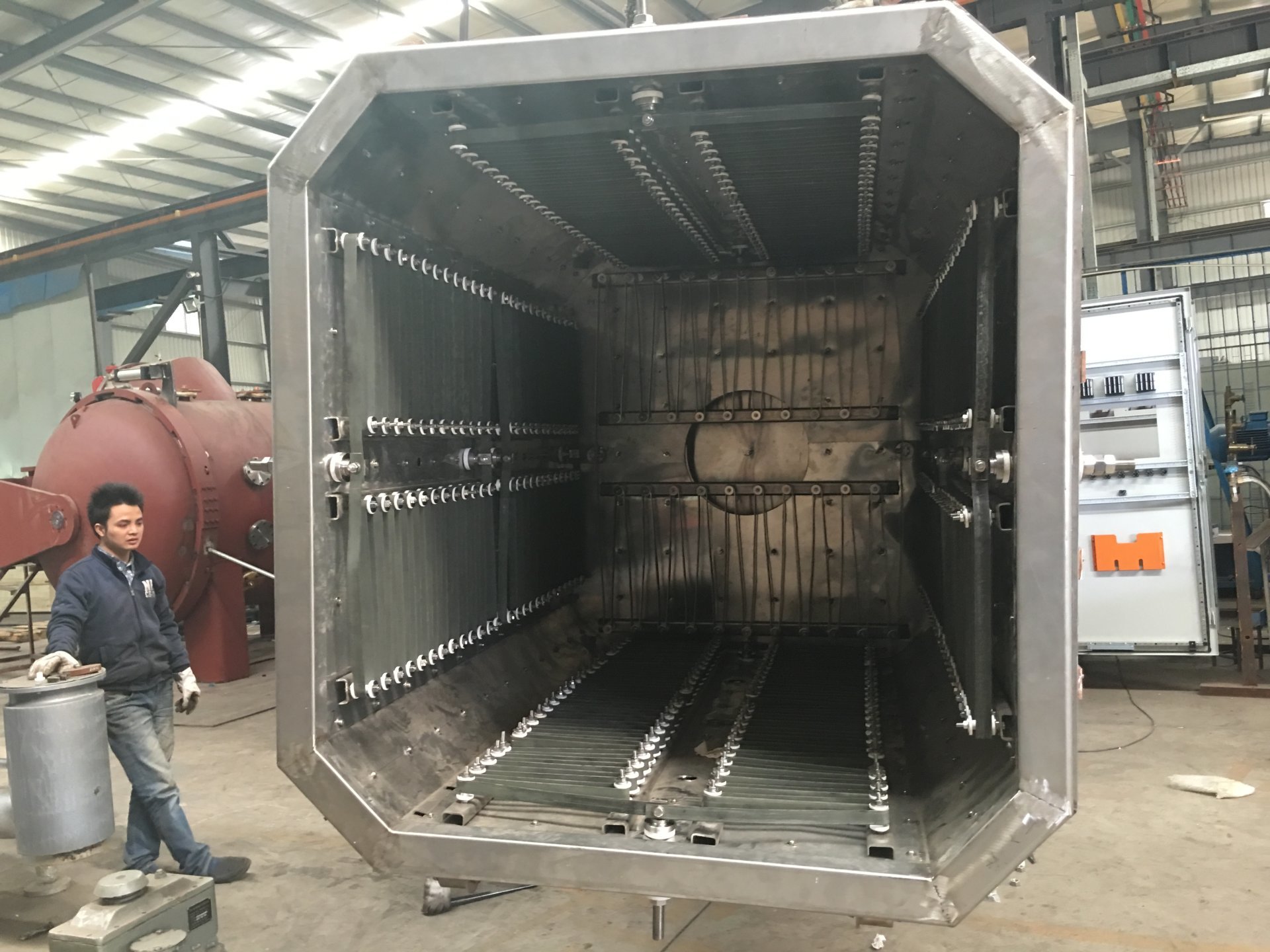

The composite structure chamber is composed of multi-zone, wide nickel-chromium alloy heating belts and multi-layer stainless steel shield, which has excellent temperature uniformity;

The inlet of the vacuum system is equipped with a gas condensing phase converter and a filtering and collecting device to prevent the contamination of the vacuum pump unit by the flux evaporation gas.

Product Specifications

Parameter/Model	HYAB-533	HYAB-644	HYAB-755	HYAB-966	HYAB-1177	HYAB-1288	HYAB-1599
Hot Zone Size W×H×L（mm）	300×300×500	400×400×600	500×500×700	600×600×900	700×700×1100	800×800×1200	900×900×1500
Loading capacity（kg）	200	250	300	400	800	1000	1200
Heating power（kw）	45	60	75	90	180	210	300
Max. temperature（℃）	700	700	700	700	700	700	700
Temperature uniformity（℃）	±3	±3	±3	±3	±3	±3	±3
Vacuum level（Pa）	8×10-4	8×10-4	8×10-4	8×10-4	8×10-4	8×10-4	8×10-4
Pressure rising rate（Pa/h）	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26
Pressure rising rate（Pa/h）	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65

Note: The above parameters can be adjusted according to customer’s requirements, not as a basis for acceptance; the specific technical scheme and agreement shall prevail.
