Product Description:

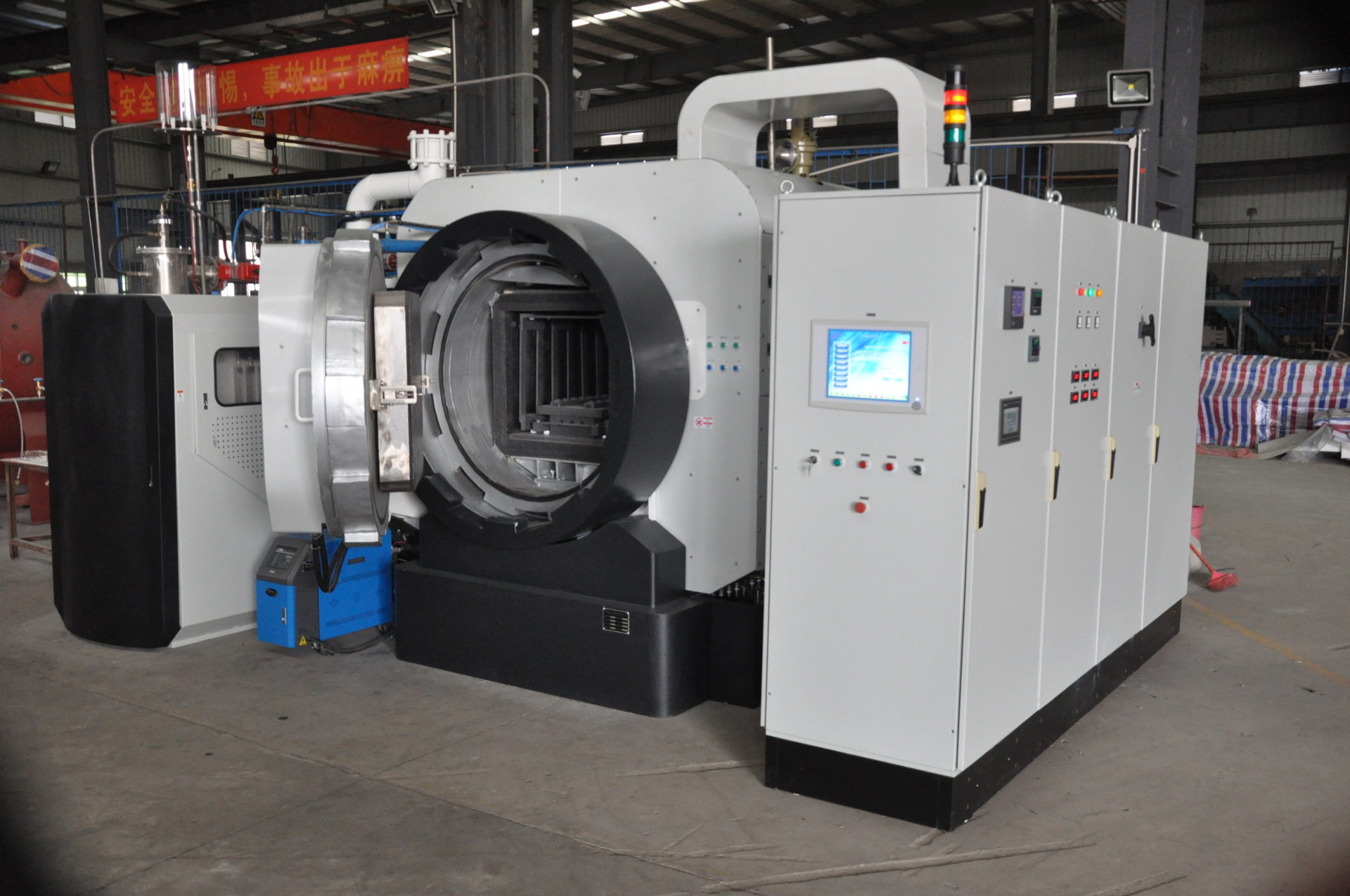

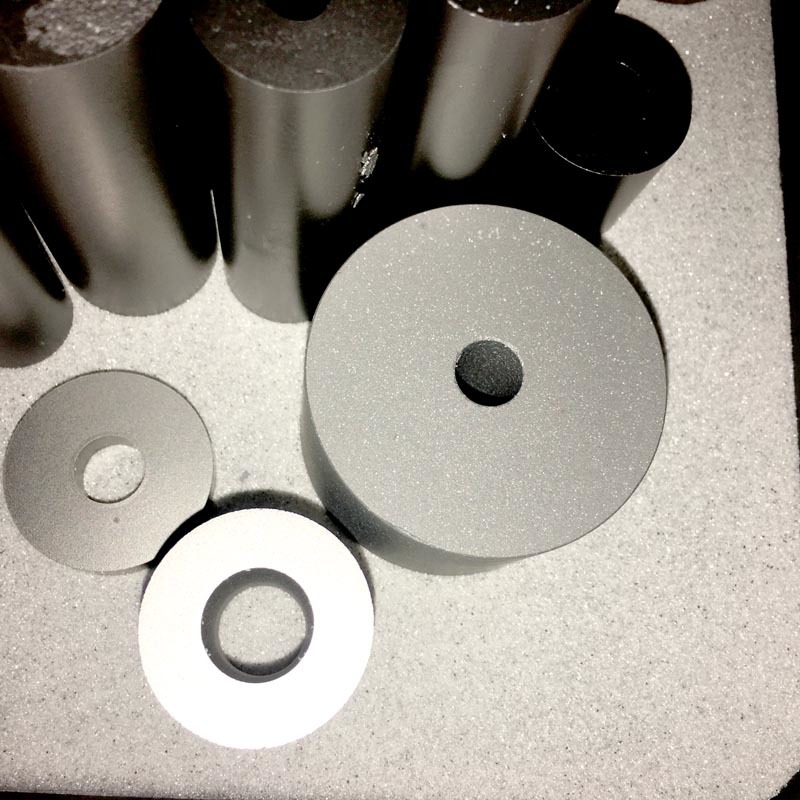

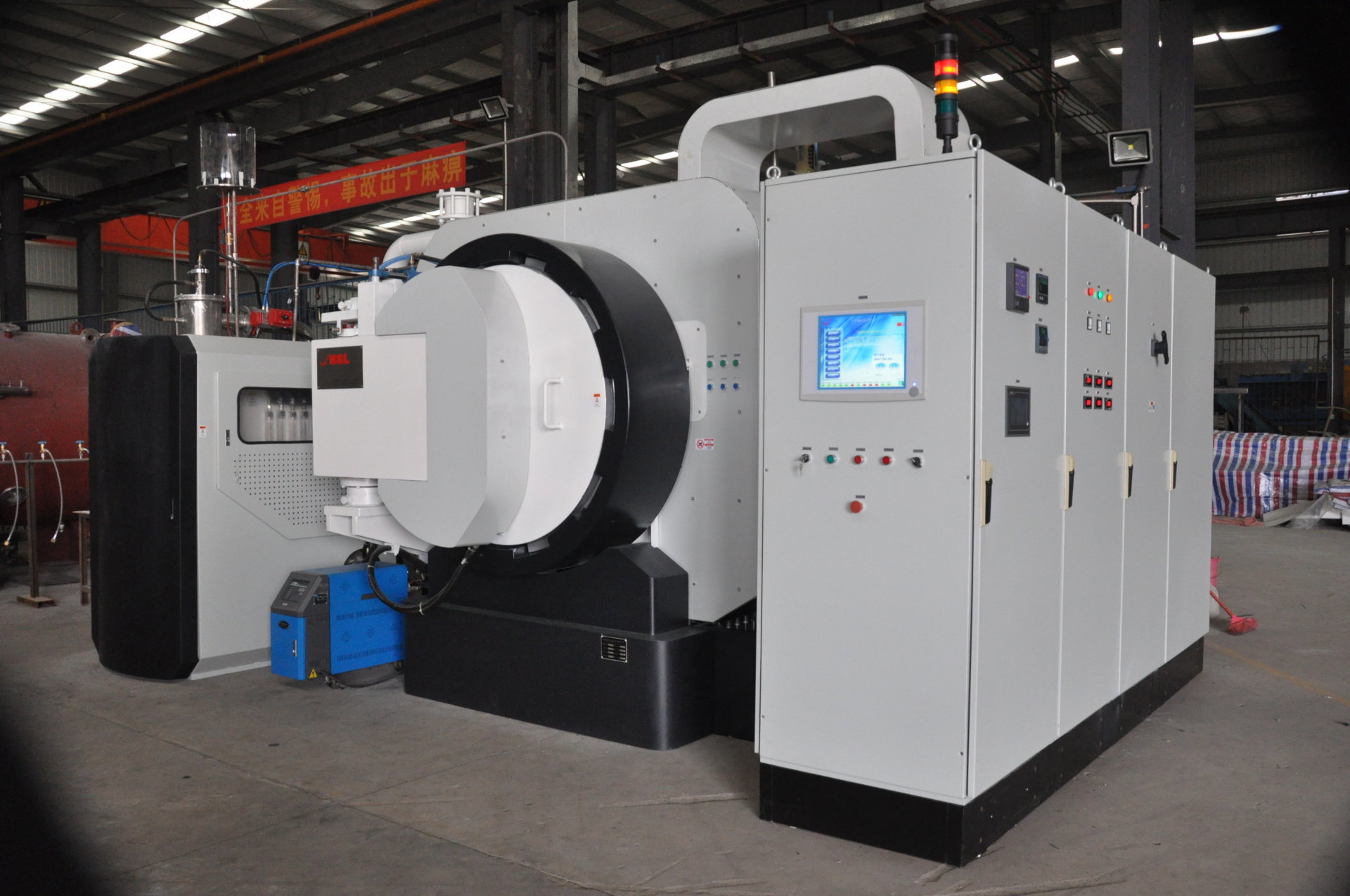

Vacuum degreasing pressure sintering furnace is mainly used for vacuum sintering and pressure sintering of metal powder metallurgy products, high specific gravity alloy and cemented carbide, etc.; vacuum infiltration of copper-tungsten alloys.

Configuration Options:

Maximum temperature 2200℃

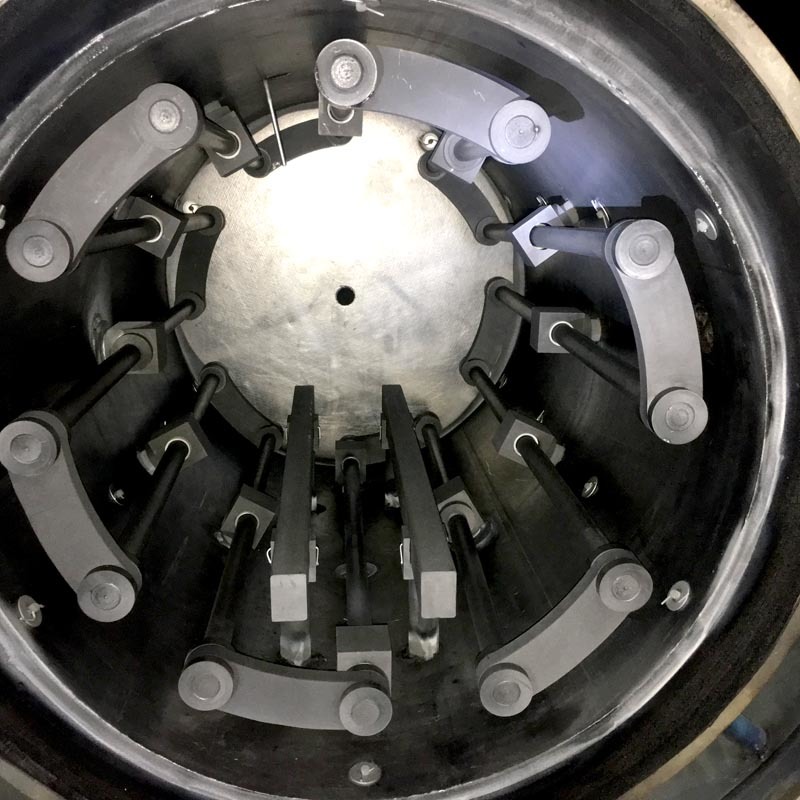

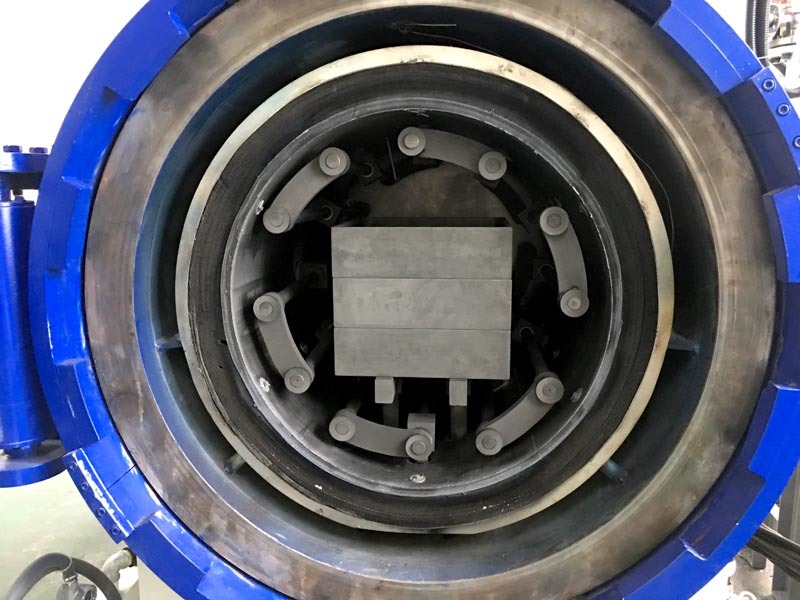

Heating elements: Graphite rod or tube, plate

Heat shield: graphite felt

Supplementary pressure cooling mode: cooling with stable cooling pressure in the furnace

Dust collector

Dewaxing unit

Remote monitoring system

Technical Features:

Using special structure chamber and heater arrangement, the temperature uniformity is excellent;

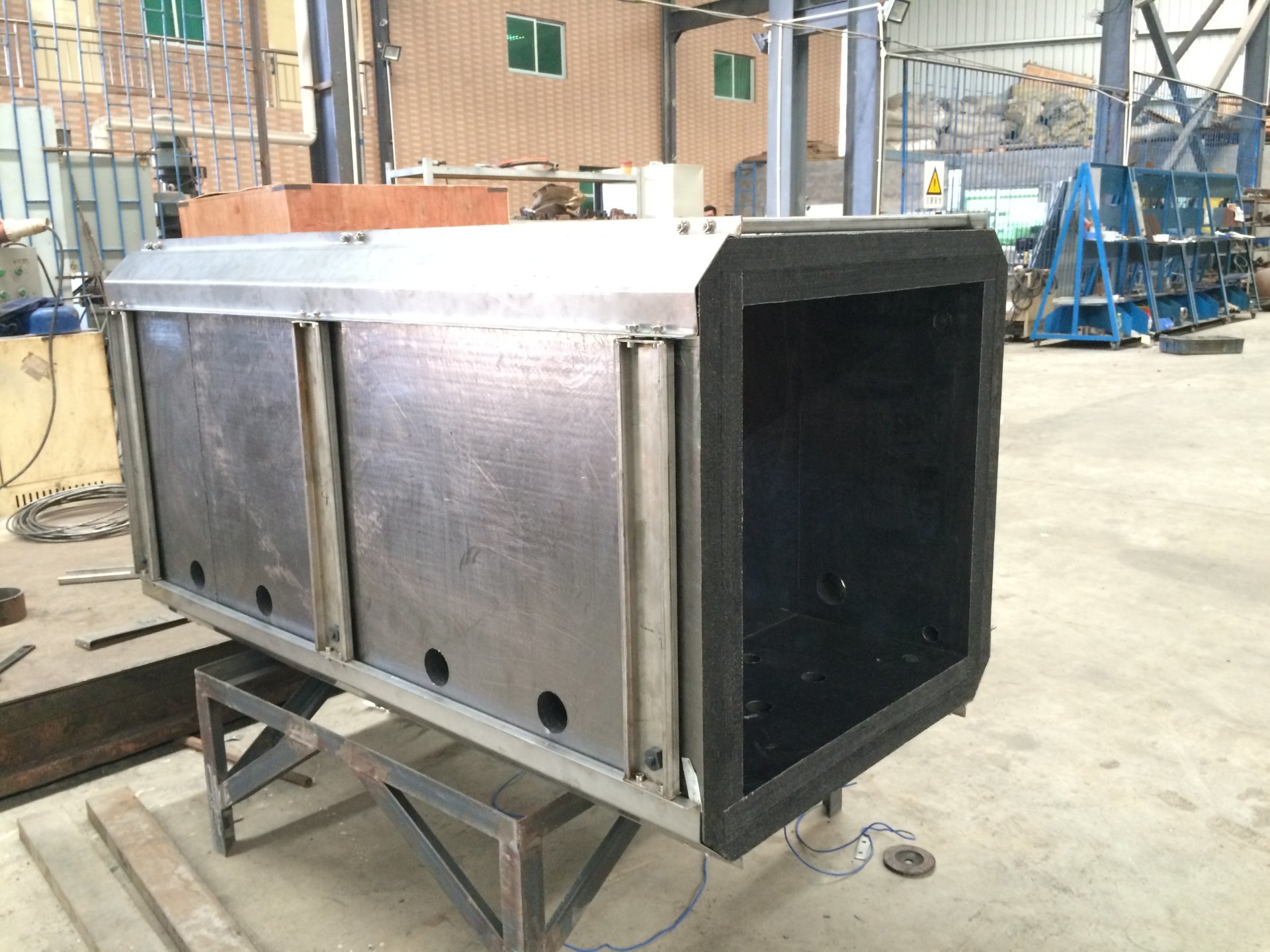

Adopt special structure degreasing box, which has good sealing effect, complete degreasing, and no pollution to the components in the furnace;

With flexible vacuuming, vacuum sintering, pressure sintering, micro positive pressure sintering, partial pressure sintering, negative pressure degreasing, TOWAC degreasing, micro positive pressure degreasing and other functions;

Using advanced thermal insulation structure and materials, the chamber has good thermal insulation performance and less heat storage, which saves more than 20% of energy compared with the traditional design;

Suitable atmosphere for processing: N2/Ar/H2.

Product Specifications

Parameter\Model	HYPS-448	HYPS-5518
Hot Zone Size W×H×L（mm）	400×400×800	500×500×1800
Max. temperature（℃）	1200-1600	1200-1600
Temperature uniformity under vacuum（℃）	±5	±5
Temperature uniformity under pressure（℃）	±10	±10
Ultimate vacuum level（Pa）	1	1
Pressure rising rate（Pa/h）	0.67	0.67
Max. pressure（MPa）	6/10	6/10

Note: The above parameters can be adjusted according to customer’s requirements, not as a basis for acceptance; the specific technical scheme and agreement shall prevail.
