product name : Vacuum Annealing Furnace
Product Description:
Mainly used for bright annealing, vacuum brazing and vacuum sintering of tool steel, die steel, high-speed steel, ultra-high strength steel, magnetic materials, stainless steel and other materials, annealing and aging of non-ferrous metals, etc.
Product Advantages:
The furnace cover is pneumatically locked to ensure positive and negative pressure bidirectional sealing;
It can effectively reduce the heat treatment deformation of rod parts;
Ultra-clean nickel-chromium heating elements and stainless steel heat shield, good vacuum performance, high temperature uniformity and long life;
The specially designed conveying mechanism ensures stable and reliable operation.
Technical Features:

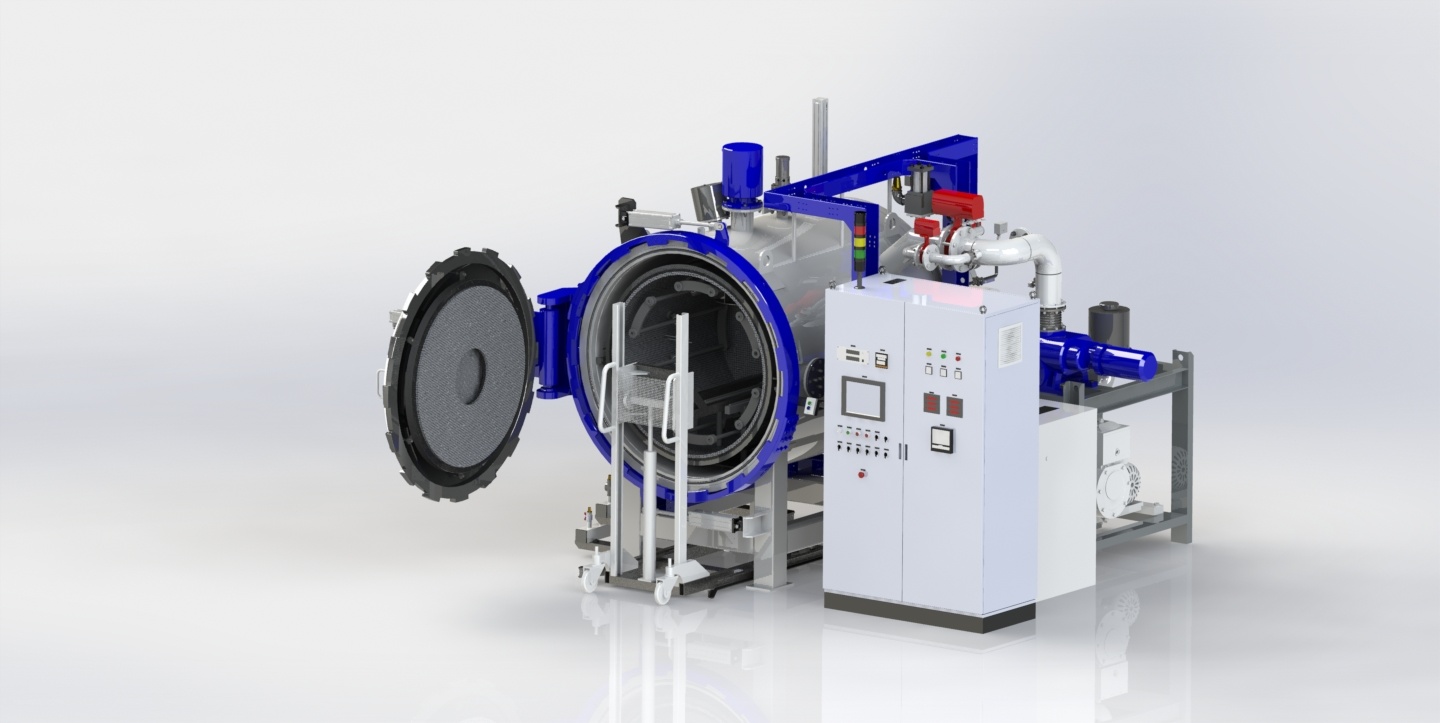

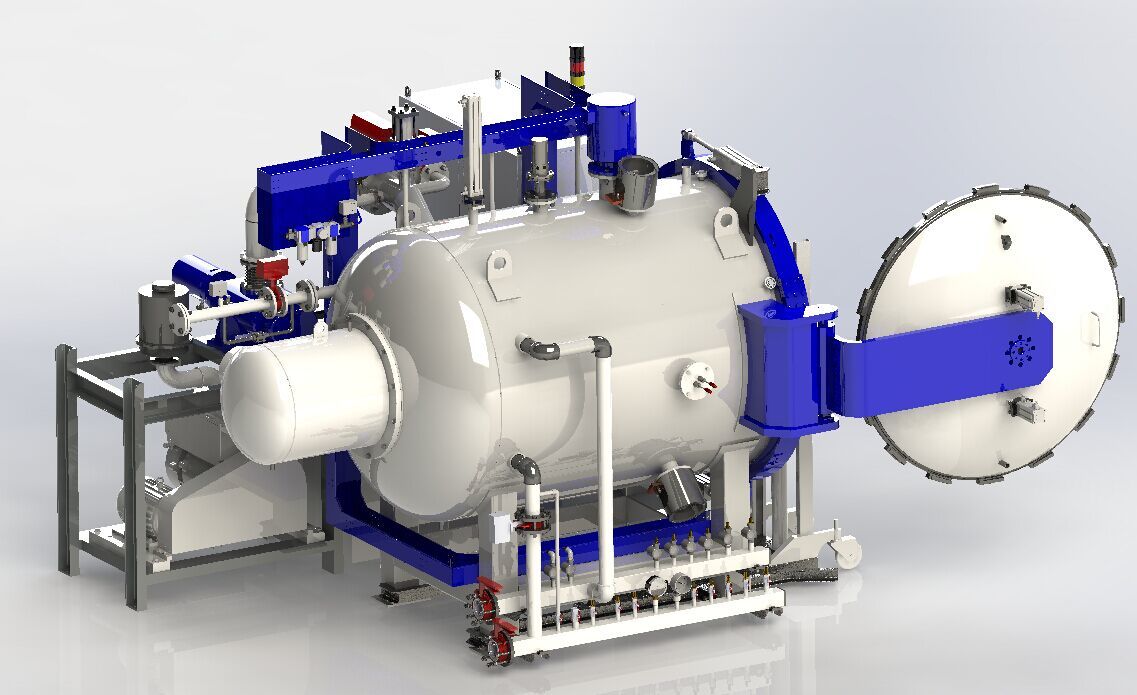

The furnace body is a horizontal, single-chamber, horizontal charging structure, and the way to open the furnace door is set according to users’ needs;
The furnace chamber is optimized by modular design, and the temperature uniformity is excellent;
All-metal heat shield adopts back insulation technology;
The optional vacuum atmosphere for heating state includes Ar and H2;

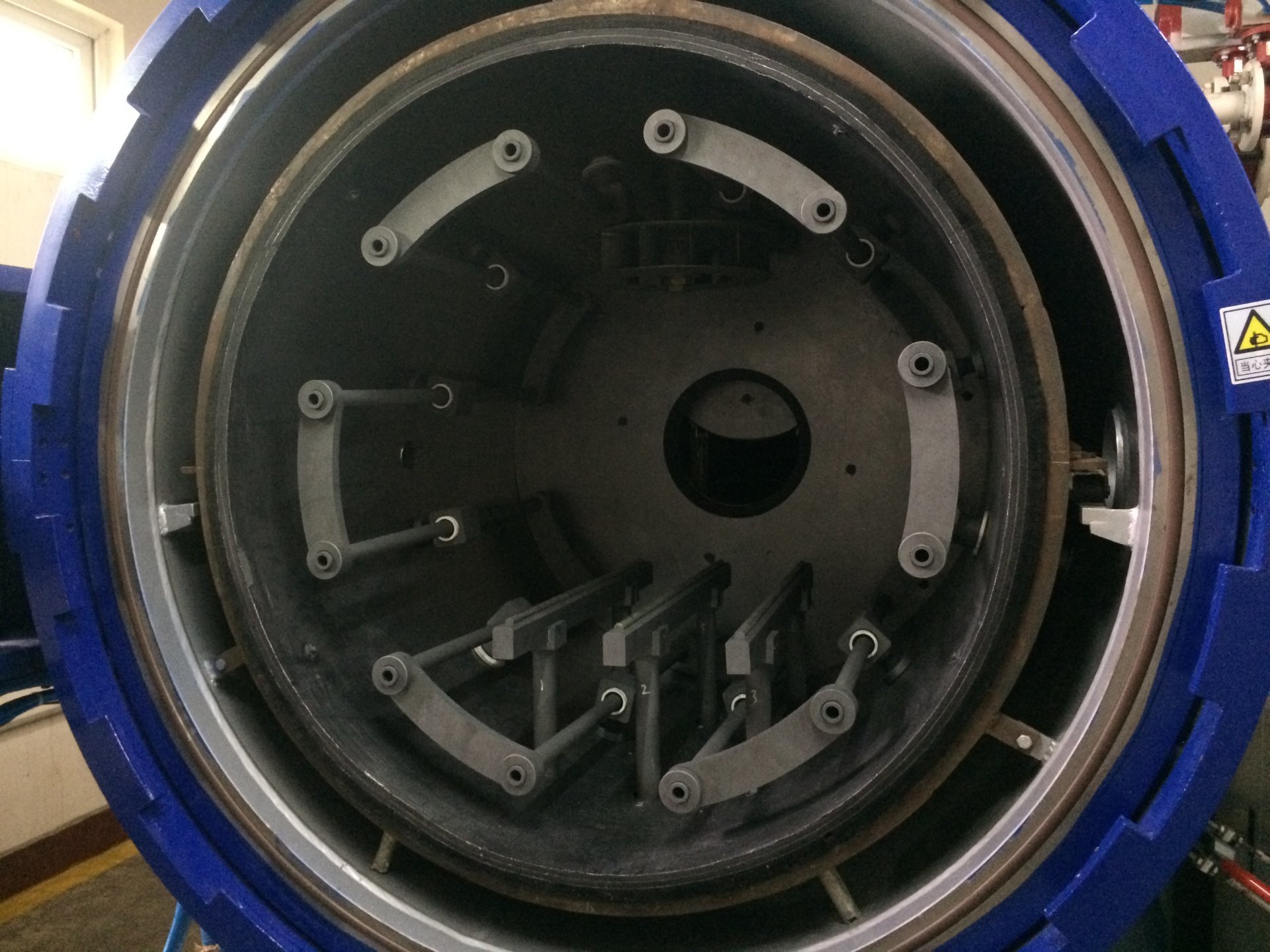

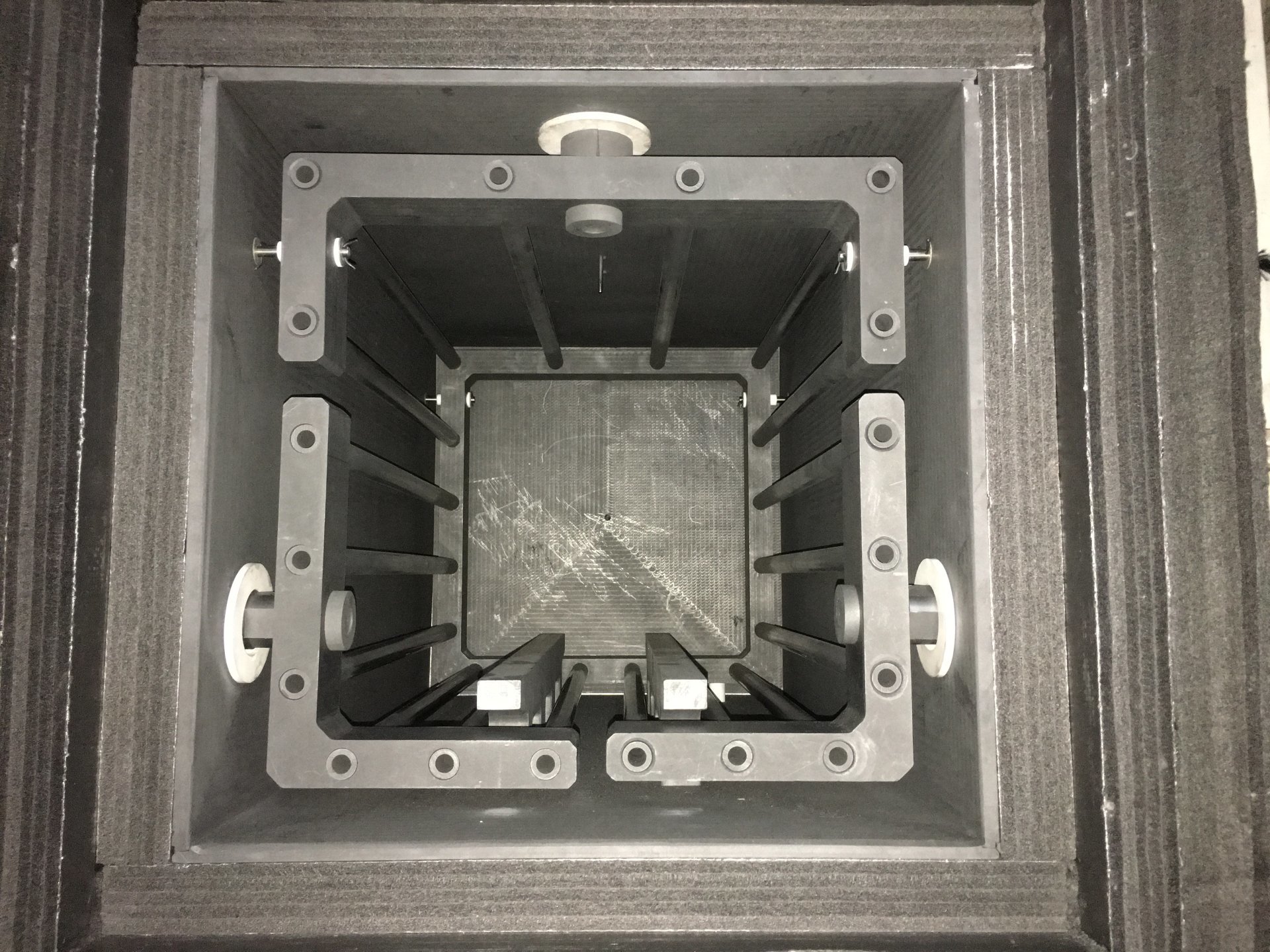

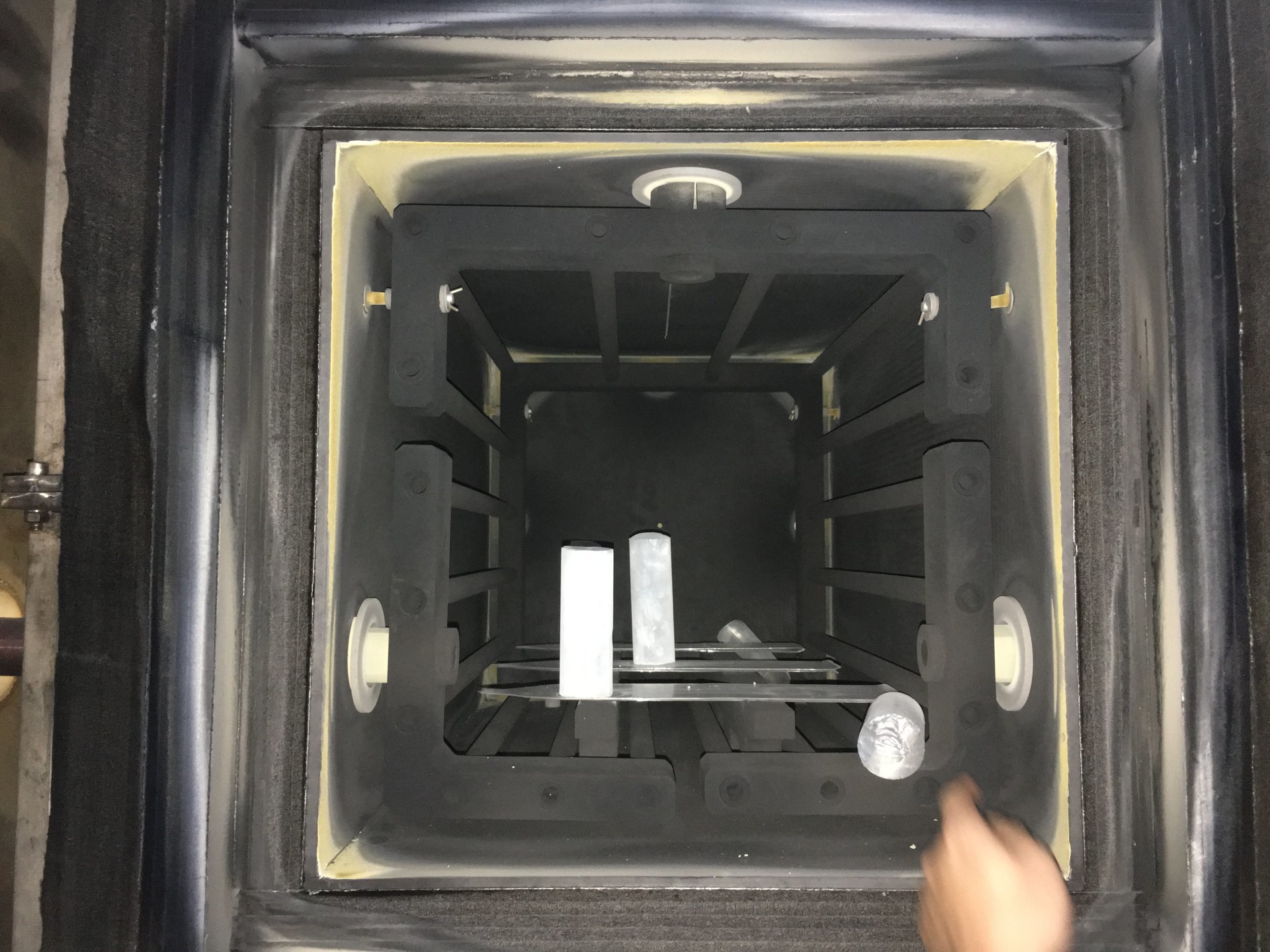

Using nickel-chromium belt heating, molybdenum heating, graphite heating, the inner heat shield can choose carbon felt, molybdenum sheet, SUS304.
Product Specifications
Parameter\Model |
HYA-533 |
HYA-644 |
HYA-755 |
HYA-966 |
HYA-1177 |
HYA-1288 |
HYA-1599 |
Hot Zone Size |
300×300×500 |
400×400×600 |
500×500×700 |
600×600×900 |
700×700×1100 |
800×800×1200 |
900×900×1500 |
Loading capacity(kg) |
150 |
250 |
400 |
600 |
1000 |
1200 |
1500 |
Heating power(kw) |
60 |
90 |
120 |
180 |
270 |
360 |
480 |
Max. temperature(℃) |
1100/1350/1700/2300 |
1100/1350/1700/2300 |
1100/1350/1700/2300 |
1100/1350/1700/2300 |
1100/1350/1700/2300 |
1100/1350/1700/2300 |
1100/1350/1700/2300 |
Temperature uniformity(℃) |
±5 |
±5 |
±5 |
±5 |
±5 |
±5 |
±5 |
Vacuum level(Pa) |
4×10-1 |
4×10-1 |
4×10-1 |
4×10-1 |
4×10-1 |
4×10-1 |
4×10-1 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
|
Pressure rising rate(Pa/h) |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
|
Cooling pressure(bar) |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
Note: The above parameters can be adjusted according to customer’s requirements, not as a basis for acceptance; the specific technical scheme and agreement shall prevail.
