product name : High Vacuum Tempering Furnace
Product Description:
It is mainly used for vacuum tempering of tool steel, die steel, high-speed steel, ultra-high strength steel, titanium alloy and other materials, after vacuum quenching and solution treatment, as well as recrystallization annealing and vacuum aging of non-ferrous metals.
Configuration Options:
Structure type: horizontal; vertical
Furnace door type: hinged; lift
Heating elements: Nichrome strip
2bar pressurized air cooling
Low temperature convection heating
Technical Features:

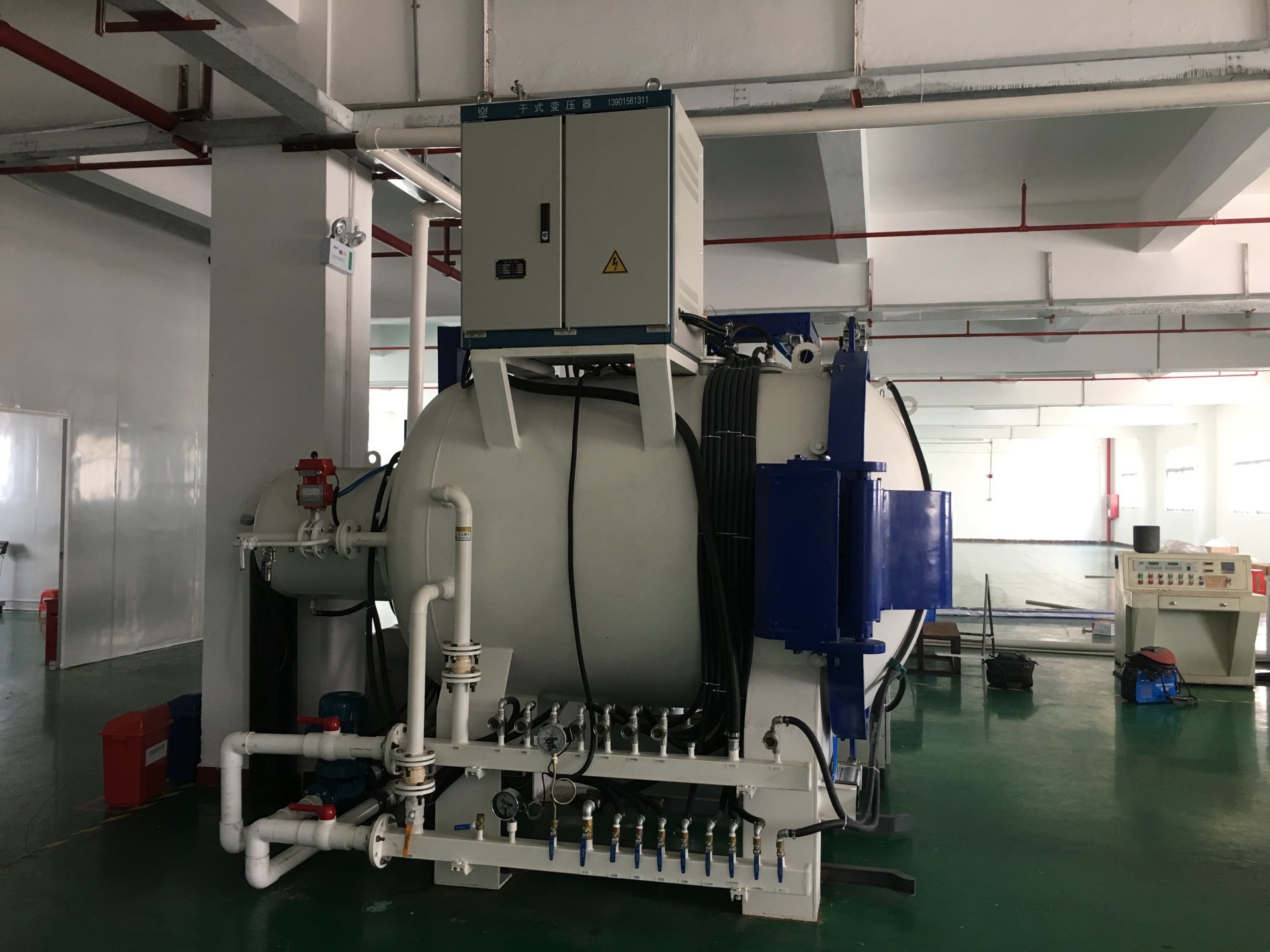

The furnace body is a horizontal, single-chamber, horizontal charging structure, and the way to open the furnace door is set according to users’ needs;

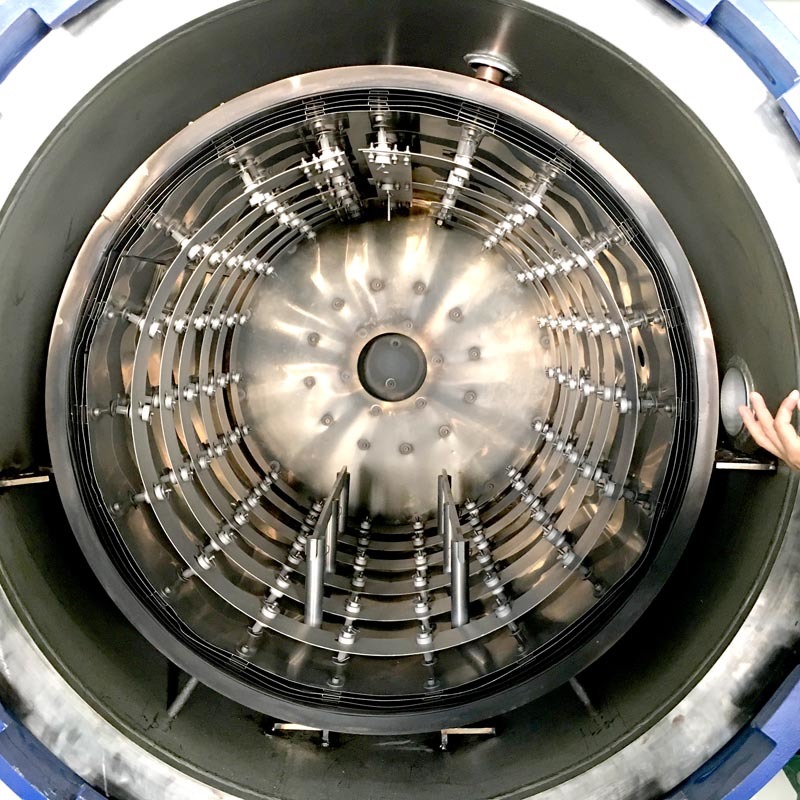

Composed of wide nickel-chromium alloy heating belts and multi-layer stainless steel shield, the synthetic structure chamber has good temperature uniformity;
The tempering process is completed under high vacuum, and the processed workpieces are bright and have no color change;
The internal heat exchanger and the fast cooling function of air cooling cycle can effectively eliminate the temper brittleness of the workpieces;
Convection heating device ensures the uniformity of furnace temperature at low temperature;
Using nickel-chromium belt heating, inner heat shield can choose SUS304 or 310S.
Product Specifications
Parameter\Model |
HYT-533 |
HYT-644 |
HYT-755 |
HYT-966 |
HYT-1177 |
HYT-1288 |
HYT-1599 |
Hot Zone Size |
300×300×500 |
400×400×600 |
500×500×700 |
600×600×900 |
700×700×1100 |
800×800×1200 |
900×900×1500 |
Loading capacity(kg) |
200 |
250 |
400 |
600 |
1000 |
1200 |
1500 |
Heating power(kw) |
45 |
60 |
90 |
120 |
150 |
180 |
240 |
Max. temperature(℃) |
750 |
750 |
750 |
750 |
750 |
750 |
750 |
Temperature uniformity(℃) |
±5 |
±5 |
±5 |
±5 |
±5 |
±5 |
±5 |
Vacuum level(Pa) |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
Pressure rising rate(Pa/h) |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
|
Cooling pressure(bar) |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
Note: The above parameters can be adjusted according to customer’s requirements, not as a basis for acceptance; the specific technical scheme and agreement shall prevail.
